Adaptation Omega40 customized keyboard case.
Related tutorial video: https://www.bilibili.com/video/BV1DGeEejEoT
Notes
- You need to purchase M2/3/3.2 heat-set inserts separately.
- Purchase a 15mm high EC11 rotary encoder according to your needs.
File list
| NAME | DESCRIPTION |
|---|---|
| Omega40_dust_cover.step | keyboard dust cover |
| Omega40_case_slim.step | relatively low-profile, exposing the switches |
| Omega40_case_standard.step | standard case |
| Omega40_plate_standard.step | standard layout |
| Omega40_plate_planck.step | Planck layout |
| knob_case.step | The knob needs to be purchased separately |

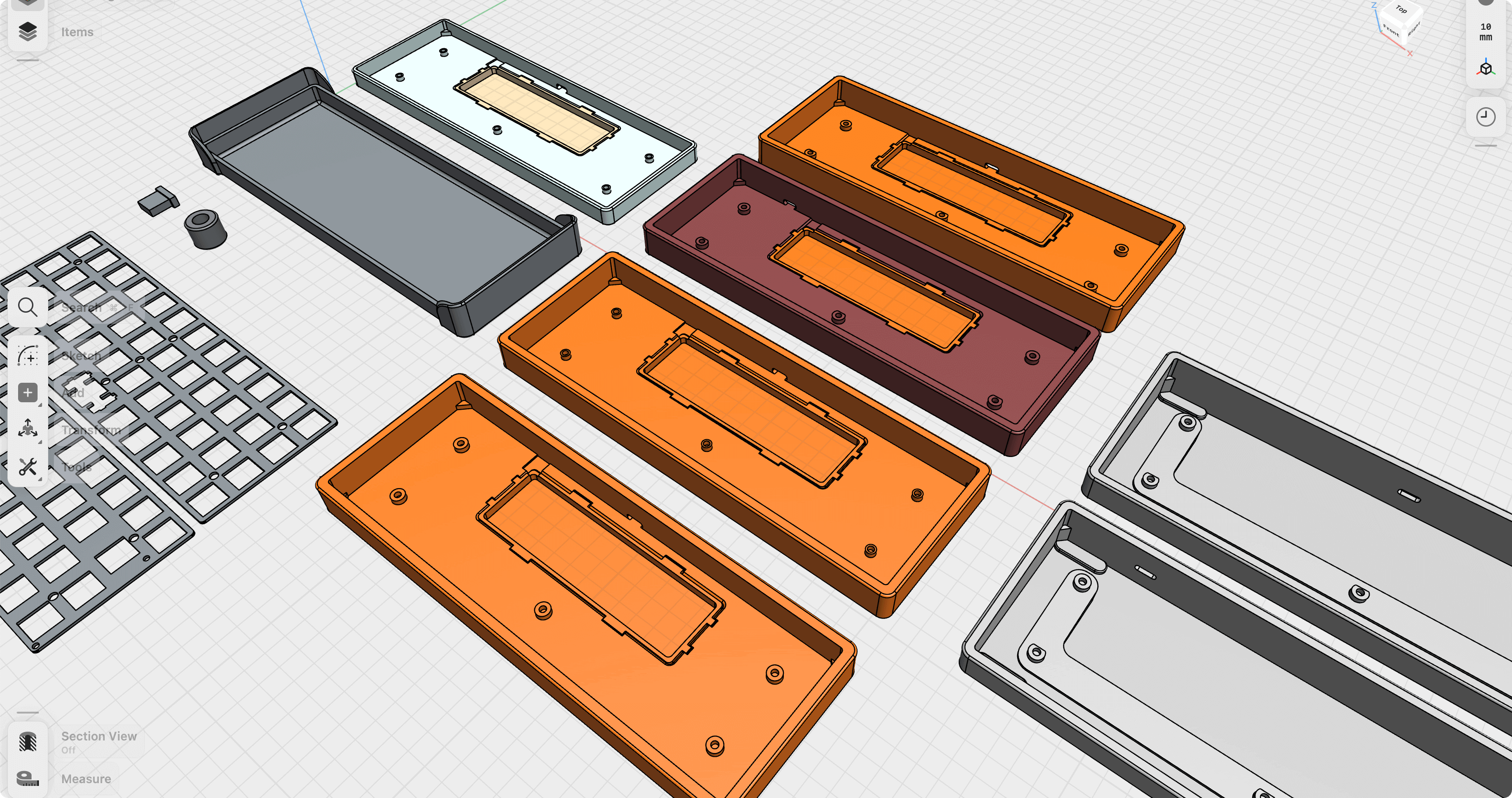

Preview

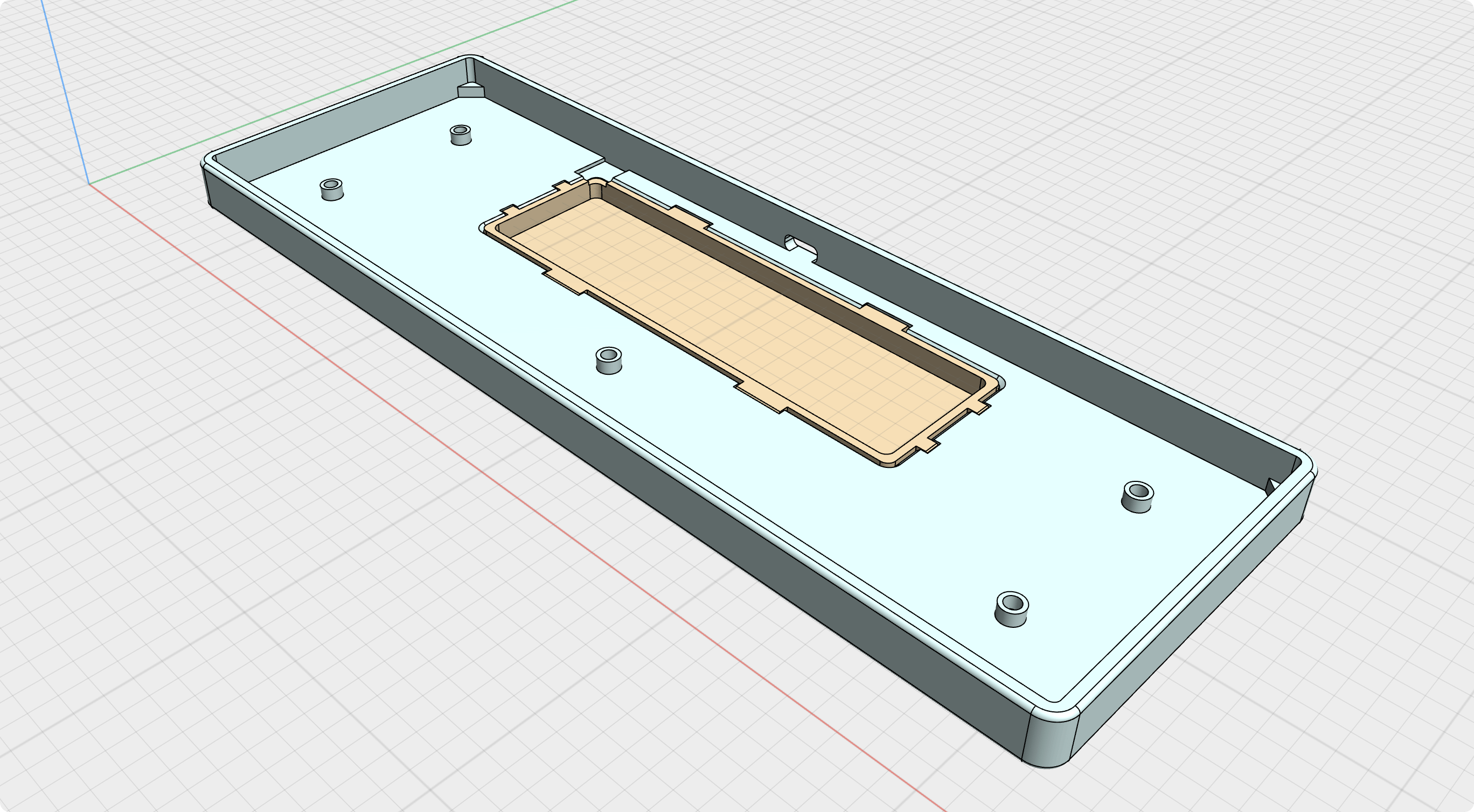

Omega40_case_slim

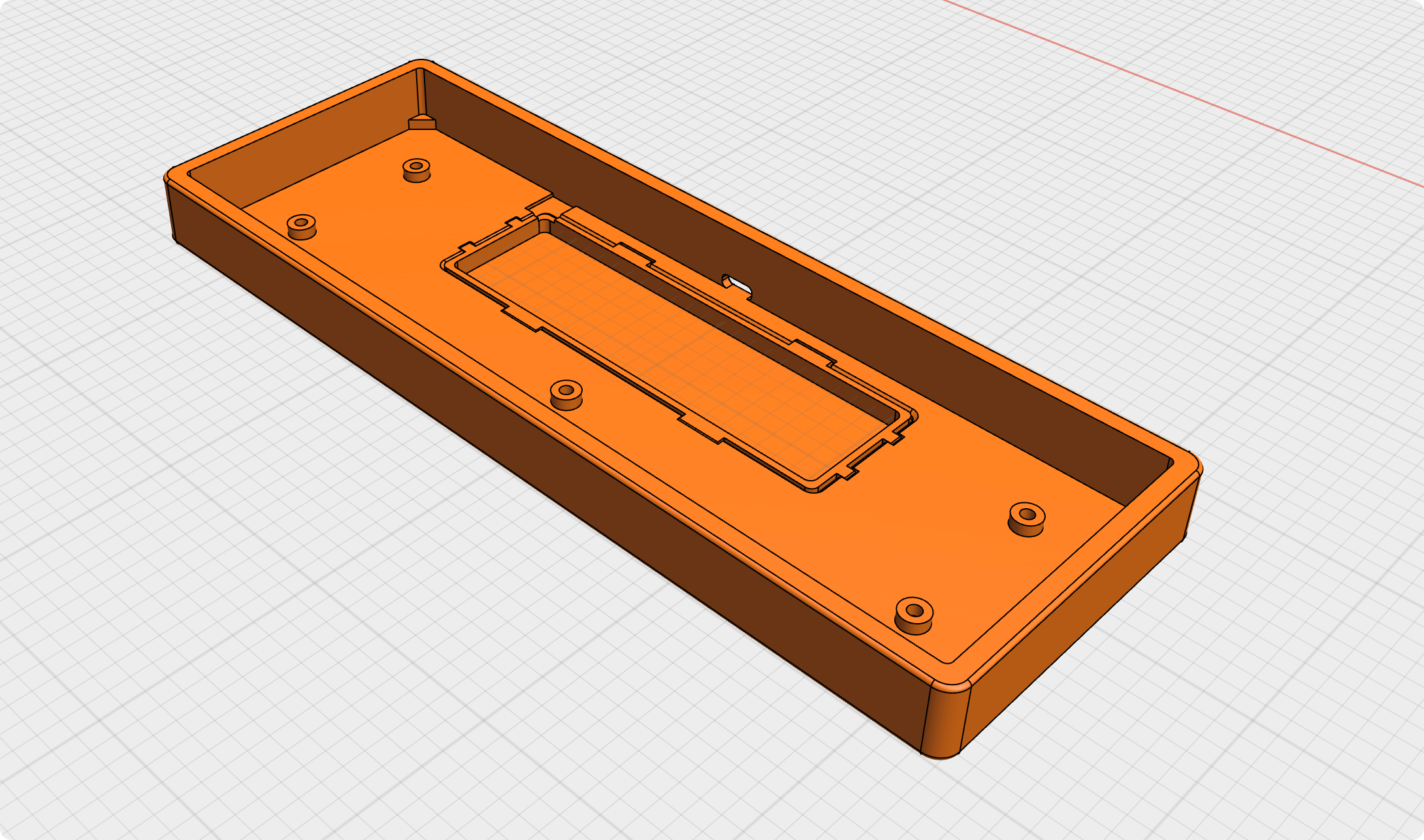

Omega40_case_standard

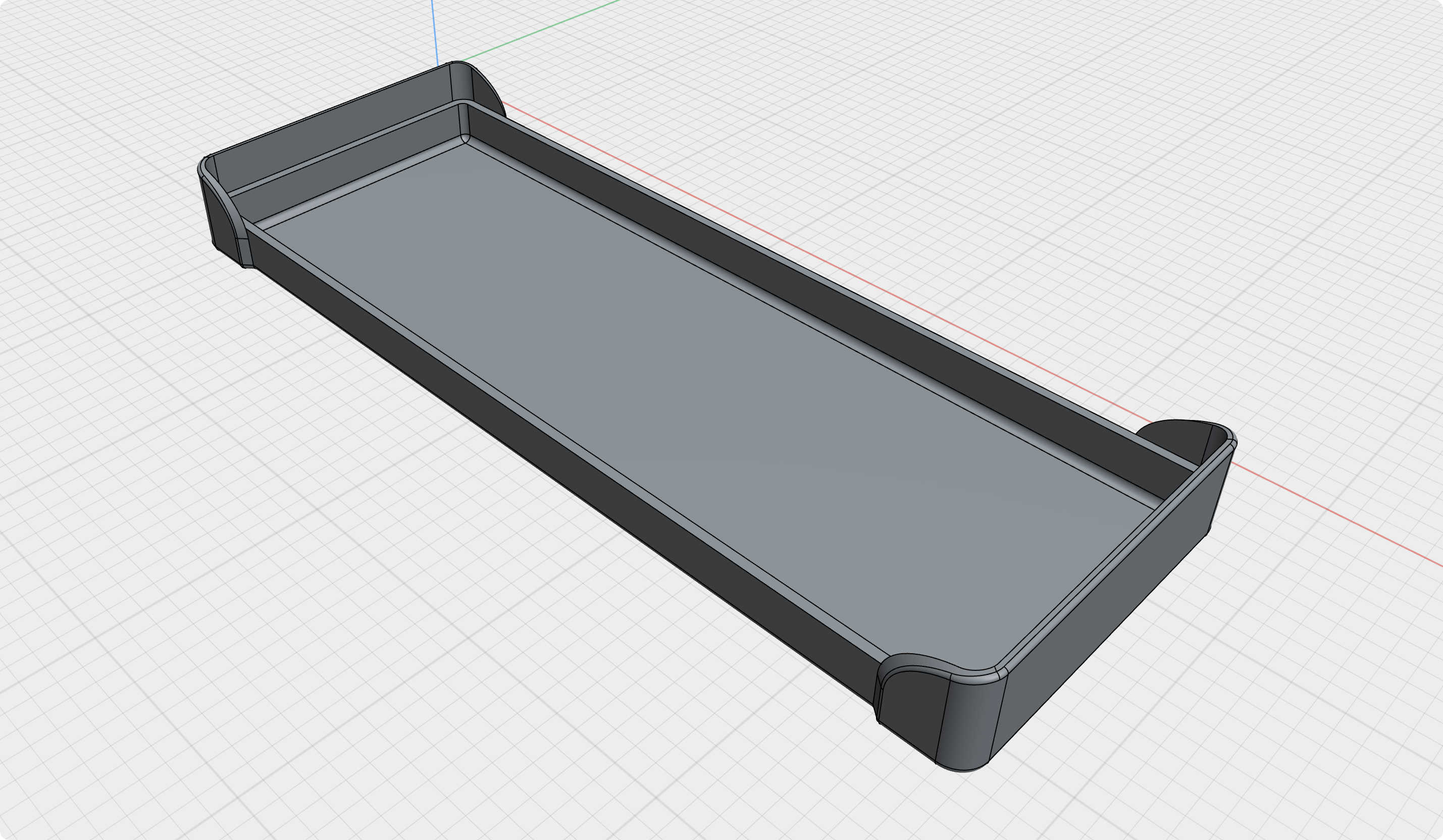

Omega40_dust_cover
